Adaptive global-FIFO ordering

The ordering axis of the polymorphic substrate. The composed MPSC / MPMC shapes beat the Vyukov queue on the cross-process leaderboard because they have zero CAS - but their guarantee is per-producer FIFO only. This layer makes global FIFO a runtime property of the SAME composed rings: every push carries an 8-byte stamp, and a consumer that k-way-merges ring heads by stamp delivers items in global order. The ordering toggle is one Release store on an MMF-resident flag - no morph, no data movement, and the in-flight backlog is retroactively ordered the instant the flag flips because the stamps were already in the slots.

Three layers, separately useful:

1. Declaration - ordering need is semantic, so the caller declares it: the Ordering QoS knob (PerProducer / GlobalFifo). The sidecar acts on the declaration: an unstamped AdaptiveRing morphs to the Vyukov shape; a stamped ring flips the merge flag.
2. Detection - what IS observable is how often the composed interleave is visible: stamped pops feed a cross-producer INVERSION counter in the shared header (one count per pop whose stamp undercuts the previous pop’s). The substrate reports inversions/sec; it acts on the rate only when the caller pre-authorized an automatic response (auto_order(threshold)).
3. Ordered switch - set_ordering_mode(MergeByStamp) flips the shared flag; every process attached to the ring sees it (the flag deliberately lives in the mapped region, not process-local state). Off -> On and On -> Off are both immediate.

Stamp sources

Stamping from a shared counter to DETECT ordering need would pay the exact contended-cache-line cost that makes Vyukov slower than composed. The escape hatch is rdtsc:

Rings opened cross-process adopt the creator’s stamp kind from the region header. Per-producer stamps are strictly increasing regardless of source skew (the issue site enforces a max(now, last + 1) floor).

Slot-space symmetry: the stamp costs 8 of the 64 Lamport slot bytes, leaving STAMPED_PAYLOAD_BYTES = 56 - exactly the Vyukov payload size, since Vyukov spends the same 8 bytes on its per-slot sequence atom. A stamped ring never morphs to the Vyukov shape (RingError::LayoutMismatch); the GlobalFifo declaration on a stamped ring is served by the merge flag instead.

The ordering region

One small shared region per stamped ring (<prefix>.ordering.bin at the File locale, {prefix}_ordering named region at ShmFs, an in-process page at Anon): a header cache line (magic, mode flag, stamp kind, inversion counter, shared stamp counter, drainer lease) plus one cache line per producer slot (issued + watermark stamps).

Ordering modes

The merge peeks every non-empty ring head, picks the minimum stamp, confirms exactly that slot, and leaves every other head unconsumed (SpscRingCore::peek_slot drop-without-confirm semantics). Three release gates protect the order:

• In-flight gate (both merge modes): producers RESERVE their stamp slot before reading the clock and finalize the watermark after the push (success or Full), so issued != watermark brackets the entire reserve-stamp-push window. A candidate above an in-flight stamp waits for the publish. This is the only bound that survives producer descheduling - under preemption or virtualization the stamp-to-publish window stretches to scheduler quanta, far past any fixed time window (observed live: a WSL2 vCPU preemption stretched it to ~63,000 cycles).
• Freshness guard (time-based stamps, when any ring is empty): a candidate younger than the guard (8,192 cycles for TSC, 2,000ns for the monotonic clock) could be raced by a stamp a producer has not even reserved yet (cross-core clock skew); the merge re-peeks until it ages out.
• Watermark gate (MergeStrict only): every EMPTY in-use ring’s watermark must have reached the candidate. Closes the not-yet-reserved case with no clock assumptions at the price of the slowest-participant tax - Vyukov pays that tax at push (serialization), the strict merge pays it at pop. Idle producers heartbeat via refresh_watermark; exiting producers call retire_producer (terminal: saturates the slot’s watermark so strict consumers never wait on it again).

Exact delivery: the reorder consumer

MergeByStamp is the cheap merge, and its guarantee is “global FIFO WITHIN stamp skew” - not exact. The scan that picks the minimum ring head is a non-atomic snapshot, and the in-flight gate only holds candidates above a reserved-but-unpublished stamp. A producer that PUBLISHES a lower stamp in the window between the consumer’s scan (which saw that ring empty) and the pop is caught by neither: the scan missed it, and the gate reports “not in flight” because it is already published. With time-based stamps the freshness guard covers this window; with SharedCounter stamps (no freshness guard) it does not, so under producer lag on a many-core host the merge can deliver, e.g., stamp 512 just before 511. The displacement is bounded by the concurrent producer count (off-by-one in practice); MergeStrict’s watermark gate is immune because it waits until every empty in-use ring’s watermark proves no lower stamp exists. A WRC litmus test confirmed this is a scan/pop TOCTOU, not a memory-ordering effect (the hosts tested are multi-copy-atomic).

For exact delivery on the SharedCounter path without paying the MergeStrict slowest-producer tax, [crate::reorder] corrects on the consumer side:

use subetha_cxc::reorder::AdaptiveOrderedReceiver;

// Exact GlobalFifo delivery, strategy auto-selected per host/config.
let mut rx = AdaptiveOrderedReceiver::new(&ring, 0);
let mut out = [0u8; 56];
while let Some((_len, _stamp)) = rx.try_recv(&mut out) {
    // deliver &out[.._len] in global stamp order
}
while let Some((_len, _stamp)) = rx.flush(&mut out) {
    // drain the buffered tail in order at end of stream
}

Measured (16-vCPU KVM guest, 4 producers -> 1 consumer, consumer drain): raw MergeByStamp ~106 ns/item but delivers off-by-one; the reorder buffer ~115 ns/item exact (+9%); MergeStrict ~135 ns/item exact (+27%). The reorder consumer keeps most of the cheap-merge throughput while delivering exactly. On invariant-TSC hosts the freshness guard already holds, so AdaptiveOrderedReceiver delivers directly with no overhead.

Single drainer

With M concurrent consumers, “global FIFO delivery” is meaningless downstream - two concurrent pops race regardless of pop order - so merge mode implies ONE active drainer. On rings with max_consumers > 1 the merge pop auto-acquires a drainer lease in the ordering header (the OwnerLease claim protocol embedded in the region so every locale gets it): losers get RingError::NotDrainer and back off; a dead drainer becomes preemptible after DRAINER_GRACE_EPOCHS missed heartbeats (the QoS sidecar ticks the epoch each scan). Multi-consumer callers that want exact pop-sequence semantics keep the Vyukov morph path.

API map

use std::sync::Arc;
use subetha_cxc::{AdaptiveRing, OrderingMode, RingShape, StampKind};

// Stamping is FIXED at construction (a runtime stamping toggle
// would change slot interpretation under in-flight unstamped
// items). The merge flag stays runtime-dynamic.
let ring = AdaptiveRing::create("/tmp/ordered_ring", 4, 1, 16384)?
    .with_ordering_stamps()?;            // probe-selected kind
ring.morph_to(RingShape::Mpsc)?;

// Producers: stamped pushes (payload cap 56 bytes).
ring.try_send(0, &42u64.to_le_bytes())?; // stamp prepended transparently

// Another process attaches; the opener validates the region and
// adopts the creator's stamp kind. The flag is shared.
let attached = AdaptiveRing::open("/tmp/ordered_ring", 4, 1, 16384)?
    .with_ordering_stamps()?;

// Consumer: stamp-stripped pops; the inversion counter runs.
let mut out = [0u8; 56];
let n = attached.try_recv(0, &mut out)?;
println!("inversions so far: {}", attached.inversions());

// The ordered switch: one Release store, retroactive over the
// backlog, pins stay valid (pinned pops consult the mode atom).
attached.set_ordering_mode(OrderingMode::MergeByStamp)?;
let (n, stamp) = attached.try_recv_with_stamp(0, &mut out)?;
# let _ = (n, stamp);
# Ok::<(), Box<dyn std::error::Error>>(())

Hot loops pin: pin.stamped_try_push(producer_id, payload) / pin.ordered_try_pop(consumer_id, out) / pin.ordered_try_pop_with_stamp(...) - the pinned pop reads the mode atom per call (one Acquire load, a plain MOV on x86 TSO), so ordering-mode flips do NOT invalidate pins.

Exact-order opt-in: with_ordering_stamps_kind(StampKind::SharedCounter) buys a total stamp order for one contended fetch_add per push; combine with MergeStrict for exactness with zero clock assumptions.

Automatic promotion

The pieces above compose into a closed loop that promotes a ring from per-producer FIFO to global FIFO on its own, while traffic runs:

    sequenceDiagram
    participant P as Producers (N processes)
    participant R as Stamped ring (MMF)
    participant C as Consumer pop path
    participant S as QoS sidecar scan
    P->>R: push (8-byte stamp prepended, ~20-cycle rdtsc)
    C->>R: pop strips stamp; undercut vs previous pop?
    C->>R: inversion counter += 1 (shared header)
    S->>R: scan tick: delta(inversions) / interval
    S->>S: DefaultOrderingPolicy.decide(observation)
    Note over S: fires only if auto_order_threshold is set,<br/>rate exceeds it, and hysteresis elapsed
    S->>R: set_ordering_mode(MergeByStamp) - ONE Release store
    Note over R: every attached process sees the flag;<br/>backlog already carries stamps,<br/>so it merges in global order retroactively


What makes the loop cheap is WHERE each cost lands. Producers pay ~20 cycles per push for the stamp, with zero coherence traffic under the TSC kind - they never coordinate. Detection rides the consumer’s existing pop (one comparison against the previous stamp). The decision runs on the sidecar’s scan thread, off every hot path. And the response is one Release store: no morph, no drain barrier, no data movement, because the in-flight backlog was stamped at birth and the merge orders it after the fact. The expensive ingredient - the stamps - was already purchased; the flip just starts spending it.

Two design decisions worth knowing before relying on it:

• The substrate never changes semantics uninvited. Ordering is a meaning, not a performance knob, so the inversion rate alone triggers nothing. DefaultOrderingPolicy acts on the rate only when the caller pre-authorized it by setting auto_order_threshold (inversions/sec); without it the rate is reported, not acted on. Declarations (GlobalFifo) always act.
• The auto arm is one-way by construction. Merged pops read zero inversions - the merge eliminates the very signal that armed it - so there is no symmetric “rate dropped, disarm” trigger. Disarming is the caller’s call: a PerProducer declaration or an explicit set_ordering_mode(Unordered). A hysteresis window (default 100 ms) keeps declaration flips and auto-arms from thrashing.

The whole loop from the top-level builder:

use subetha_cxc::AutoIpc;

// Pre-authorize: if the observed cross-producer inversion rate
// exceeds 1,000/sec, the sidecar arms the stamp-merge - global
// FIFO from that pop onward, retroactive over the backlog.
let endpoint = AutoIpc::new("/tmp/orders.bin")
    .producers(4)
    .auto_order(1_000.0)
    .build_adaptive::<u64>()?;
# drop(endpoint);
# Ok::<(), Box<dyn std::error::Error>>(())

OrderingPolicyObservation carries the full snapshot (inversions_per_sec, current_mode, declared, participant counts, since_last_change) and OrderingPolicy is a public trait, so a custom policy can promote on whatever it likes - time of day, participant count, an external flag - with the same one-store response. The unit test auto_order_arms_merge_on_observed_inversion_rate and the mid-traffic flip in the E2E proof are the executable versions of this section.

Production surfaces

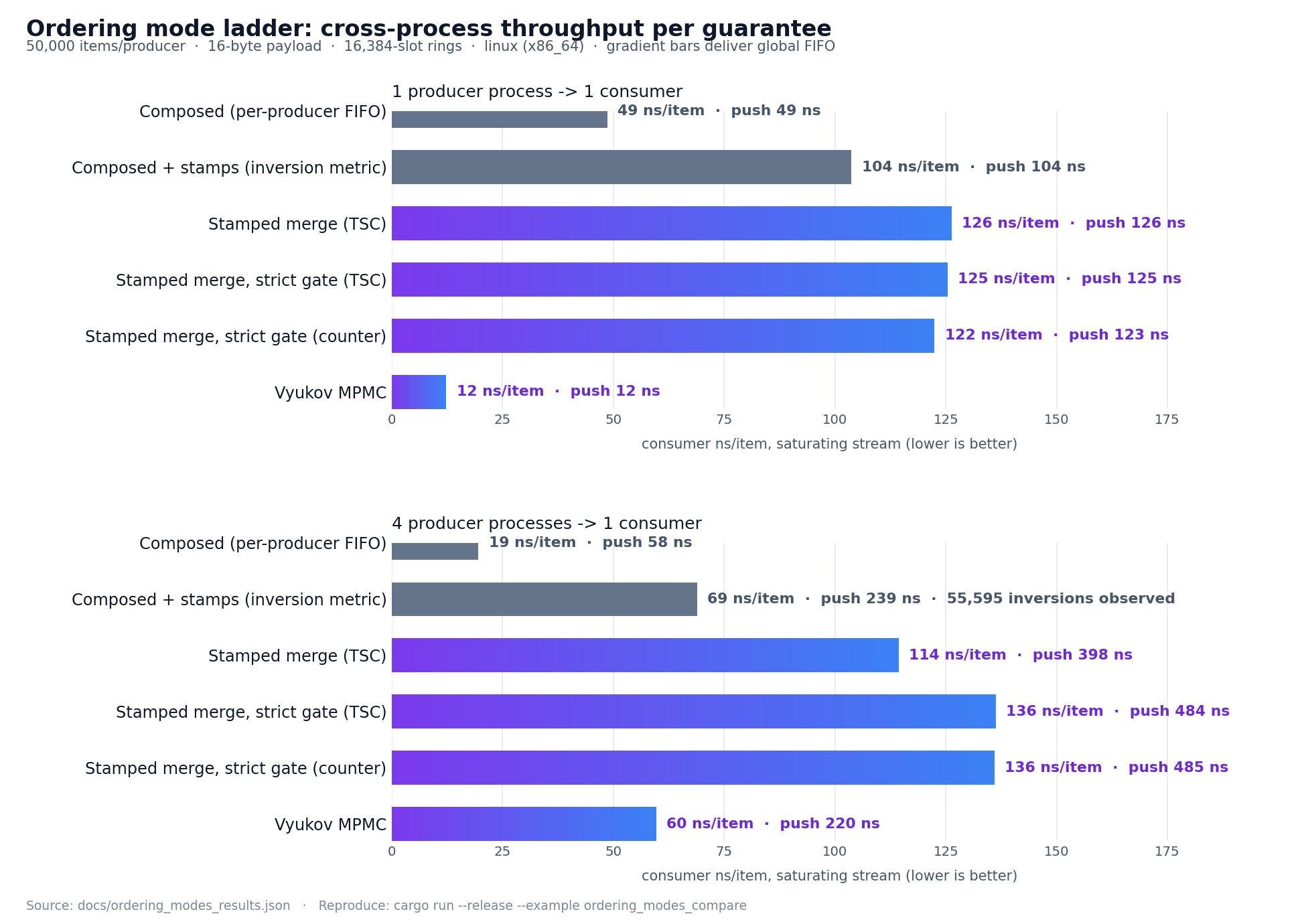

Bench: the mode ladder

Numbers, methodology, and the bench-audit notes live in docs/ORDERING_MODES_PERFORMANCE.md ; the raw JSON is docs/ordering_modes_results.json. Each contender’s consumer CHECKS the guarantee it charges for: per-producer sequence monotonicity everywhere, and zero inversions for the STRICT merge rows (they fail the run with a non-zero exit otherwise). The best-effort MergeByStamp row REPORTS its within-skew inversion count rather than asserting zero - matching its documented contract.

E2E proof

Two real-multi-process binaries, verified on Windows + WSL Linux across repeated back-to-back runs:

• ordering_xproc_consumer creates the stamped ring and spawns 4 ordering_xproc_producer PROCESSES. Draining 400,000 items unordered observes ~30,000-60,000 inversions (the detection layer); flipping the flag mid-traffic yields ZERO new inversions and monotone stamps from the flip point, with every producer sequence complete (zero loss). The --no-flip variant is the report-only measurement.
• qos_ordering_morph proves the declaration path on an unstamped ring: the QoS flip drives a sidecar Vyukov morph under live traffic with zero loss.

References

• Source: crates/subetha-cxc/src/ordering.rs (984 lines, 12 unit tests - stamp sources, region, gates, drainer lease) + crates/subetha-cxc/src/adaptive_ring.rs (stamped paths - with_ordering_stamps[_kind] / try_recv_with_stamp / the pin stamped_try_push / ordered_try_pop[_with_stamp] - the merge pop, OrderingPolicy / DefaultOrderingPolicy, and the spawn_with_qos[_gated] sidecar; DRAINER_GRACE_EPOCHS = 3).
• Exact delivery: crates/subetha-cxc/src/reorder.rs (ReorderBuffer / ReorderingReceiver / AdaptiveOrderedReceiver, unit-tested) + crates/subetha-cxc/examples/ordering_race_proof.rs (demonstrates the scan/pop TOCTOU via the library’s inversion counter and proves the auto-selected exact-delivery fix).
• Bench: crates/subetha-cxc/examples/ordering_modes_compare.rs (writes docs/ordering_modes_results.json, from which the committed comparison charts are rendered).
