SubEtha

Cross-Context Channel for Rust. Kernel-bypass IPC that spans threads, processes, and disk through a single memory-mapped file.

Don’t Panic.

SubEtha implements CXC, the Cross-Context Channel: a typed channel that spans every execution context users actually have. Cross-thread within a process. Cross-process on the same machine. Persisted to disk through the OS page cache. Cross-machine with a QUIC tunnel at the edge. One byte layout, one API, no kernel on the data path after construction.

The name comes from Douglas Adams’s Hitchhiker’s Guide to the Galaxy. The Sub-Etha Sens-O-Matic used sub-etheric waves to communicate around conventional channels. CXC does the same thing: it skips the kernel’s “conventional channel” (named pipes, sockets, IPC handles) and writes directly to user-space memory the kernel page-aliases between participants.

The Guide

Jumping-off points inside the reference: the full primitive catalog · rings, stacks, and queues · the adaptive shape-morphing ring · cross-platform benchmarks · the crate family .

How fast?

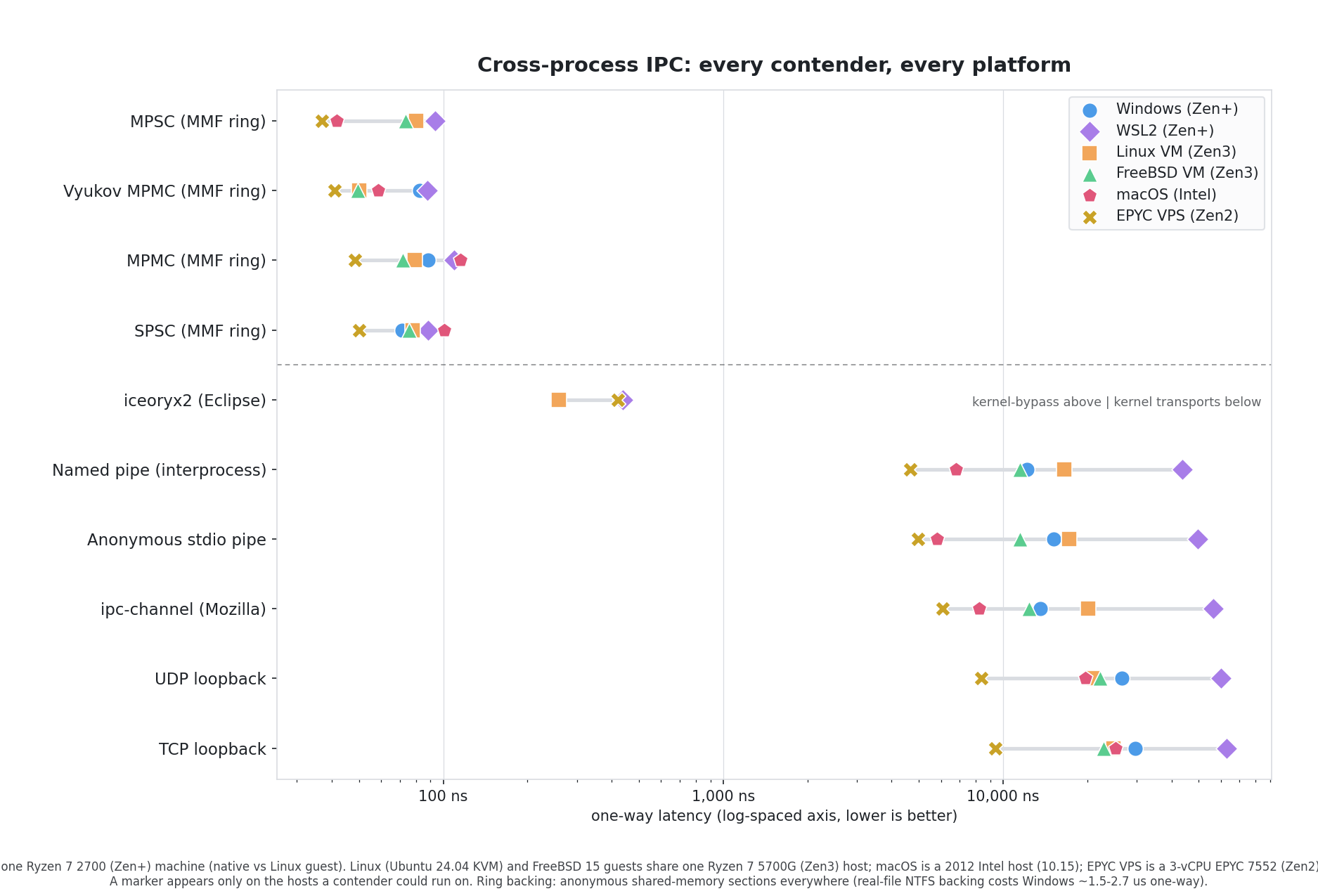

Measured on five hosts (native Windows + WSL2 on a Ryzen 7 2700; a Linux VM and a FreeBSD VM on a Ryzen 7 5700G; a 2012 Intel Mac), 10,000 round-trips, 8-byte payloads, cross-process between parent and child. A marker appears only on the hosts a contender could run on:

Across all five hosts the four pinned SubEtha shapes land at 54-408 ns one-way - 80-528x faster than the fastest kernel IPC on each host, and 4.8-8.8x faster than iceoryx2’s zero-copy shared memory where it builds. The exact numbers on the Linux host:

The methodology audit and reproducibility instructions are in docs/CROSS_PROCESS_IPC_PERFORMANCE.md .

In-process, too

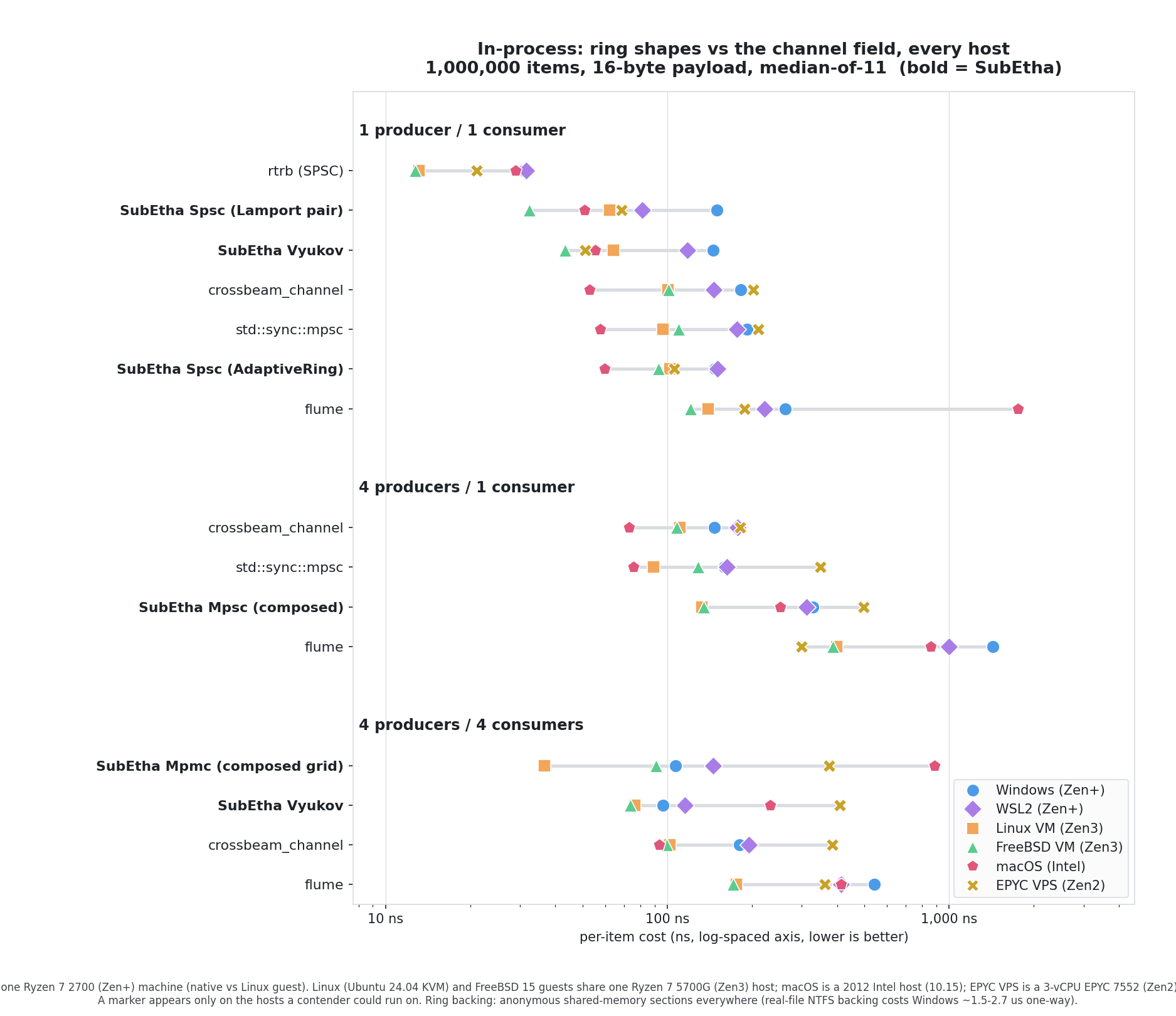

The same rings run thread-to-thread with no memory-mapped file, against crossbeam_channel, flume, rtrb, and std::sync::mpsc (1,000,000 items, 16-byte payload, median-of-11), benched on every host:

The composed MPMC grid leads 4-producer / 4-consumer on every modern host (37.6 ns/item on Linux, roughly 2x faster than crossbeam_channel), though the 13-year-old Intel Mac flips that one cell to crossbeam. rtrb’s purpose-built SPSC leads raw 1P/1C everywhere. Each contender appears only in the scenarios its API supports - rtrb (SPSC) in 1P/1C alone, std::sync::mpsc (single-consumer) through 4P/1C, crossbeam and flume (MPMC) in all three - and none of them crosses a process boundary: this whole field is in-process only. SubEtha is the same structure morphing across all four shapes, running cross-thread, cross-process, and cross-host.

What it looks like

use subetha_cxc::AutoIpc;

let chan = AutoIpc::new("/tmp/events.bin")
    .capacity(64)
    .build_channel::<u64>()?;

chan.send(&42)?;                  // non-blocking
let v = chan.recv()?;
assert_eq!(v, 42);

chan.send_blocking(&42, None)?;   // parks the thread
chan.send_async(&42).await?;      // suspends the task, any executor

One handle answers all three call styles. Sync, blocking, and async are not separate types; you pick per call. The async future is a plain std::future::Future, so it runs on tokio or on the crate’s own runtime-free block_on.

Same file path, opened from another thread or another process or after a reboot: same behaviour. The AutoIpc builder picks the empirically-best primitive based on declarative workload hints. .batch_size(64) flips to KHL work-stealing. .consumers(4) flips to URD per-thief mailboxes. No hints flips to SharedRing streaming.

The crate family

The principal user-facing crate is subetha-cxc , the CXC implementation. Channel<T>, AdaptiveIpc<T>, AutoIpc, the MMF dispatcher, and roughly forty MMF-backed primitives: SharedRing, the SharedDeque family (Chase-Lev, plus the novel KHL / KHPD / LOH / URD variants), SharedHashMap, SharedRWLock, SharedSemaphore, SharedLRUCache, SharedBTreeMap, OwnerLease, HeartbeatTable, EpochBarrier. Same MMF, three deployment modes. Map the file from a second thread and it works cross-thread. Map it from a second process and it works cross-process. Let the kernel flush dirty pages to disk and it persists. There is no separate “shared memory” abstraction versus a “disk” abstraction. The MMF is both at once.

The companion crate is subetha-pointers : eleven exotic pointer types built for the cross-context payloads CXC carries.

• UmbraPointer<T> carries a 4-byte content prefix beside the pointer for short-circuit equality before deref.
• BloomPointer<T> carries a 64-bit Bloom filter for probabilistic set membership without hashing.
• CardinalityPointer<T> carries a log2 cardinality estimate for size-class branching.
• KStepPointer<T> encodes a log2 stride for SIMD-friendly indexing.
• KTower2<T> and KTower3<T> encode multi-segment zone-region-offset addressing.
• SelfDescPointer<T> carries a type discriminant for heterogeneous channels.
• VersionedPointer<T> and HlcVersionedPointer<T> carry version metadata for MVCC and hybrid-logical-clock distributed consistency.
• ReadableCapability<T> and WritableCapability<T> carry runtime bounds for capability-secured cross-process channels (CHERI-style).

The substrate is subetha-core (handshake header, observation ring, marshal trait, axis-signature catalog, CPUID helpers). The control plane is subetha-sidecar (per-NUMA scan thread, policy, SidecarBox, AdaptiveInstance). The 1.62x send::<u64> speedup is in source: a TypeId-monomorphised branch in AdaptiveIpc::send that LLVM resolves to a constant at codegen time. No opt-in. All four crates build on stable Rust 1.96+.

Three doors into the Guide

If you came to write code, start with the getting-started tutorial . Twenty minutes from zero to your first working cross-process channel.

If you came to understand the architecture before touching code, start with the architecture overview and read it alongside the frozen-channel explanation for the why.

If you already know your concurrency shape, the role-pair selection guide maps shapes to primitives without ceremony.

Reading order

The four sections of this guide follow Diataxis : Tutorial, How-To, Reference, Explanation. They are independent. Read in any order.

• Tutorial is a teacher. It assumes nothing and walks you from zero to a working channel.
• How-To is a recipe book. Each page solves one specific problem in five minutes.
• Reference is the operating manual. Every type, every parameter, every guarantee. Look things up.
• Explanation is the design rationale. Why the byte layout looks the way it does. Why the dispatcher exists. Read when you want to understand, not when you want to ship.

License

SubEtha is licensed under the MIT License. See LICENSE-MIT for the full text.

“So long, and thanks for all the pipes.”
